Configure Registry Criteria Panel
AdminStudio 2025 | 29.0 | Application Manager | Criteria Wizard

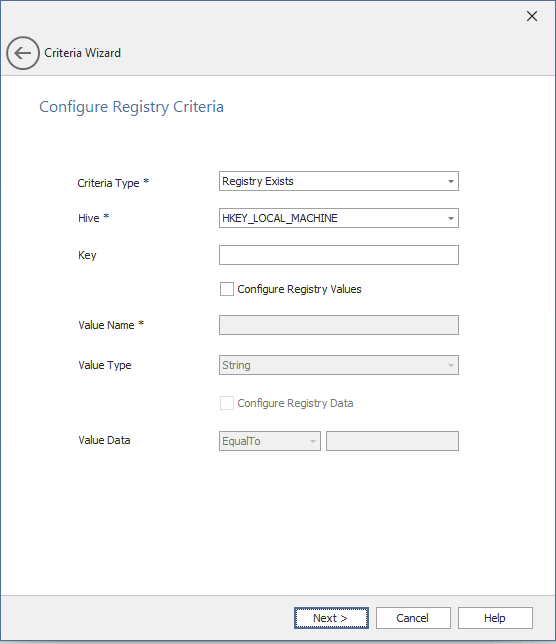

On the Configure Registry Criteria panel, you specify the registry criteria.
The Configure Registry Criteria panel includes the following properties:
| Property | Description |
|---|---|
| Criteria Type | Select one of the following Criteria Type: Registry exists Registry does not exist |
| Hive | Select the registry hive of the registry key or value that you are using in this criteria. Select the required Hive from the following list: HKEY_CLASSES_ROOT HKEY_CURRENT_CONFIG HKEY_CURRENT_USER HKEY_LOCAL_MACHINE HKEY_USERS By default HKEY\_LOCAL\_MACHINE will be selected. |
| Key | Enter the registry key that you are using in this criteria. |
| Configure Registry Values | Select this check box to configure registry values. The following properties will be enabled only when you select this check box. Value Name Value Type Configure Registry Data By default, this check box will be unselected. |
| Value Name | Enter the registry value name that you are using in this criteria. This field is enabled only when the Configure Registry Values check box is selected. |
| Value Type | Select the one of the following value type: String DWORD (32 bit) DWORD (64 bit) Multi-String Expandable-String Version By default, the String type will be selected. This field is enabled only when the Configure Registry Values check box is selected. |
| Configure Registry Data | Select this check box to configure the registered data value. By default, this check box will be unselected. |
| Value Data | Select one of the following registered data value: EqualTo NotEqualTo GreaterThanOrEqualTo GreaterThan LessThanOrEqualTo LessThan In the Value field, enter a value for the registry value to define the criteria. This field is enabled only when the Configure Registry Data check box is selected. If you select Value type as a Version , then enter the version value of the criteria in the below format: 1.0.0.0 |
